Vikrant Engineering's Electro-Forged Gratings is made of resistance-welding process to create a Rigid Finish to suite the corresponding Environment. The process of manufacturing is done where the Bearing Bars is Resistance-welded at the contact point with the cross bars under a combination of high heat and pressure which is fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for comfortable walking.
Electro-Forged Gratings type is most commonly used compared to all other grating types due to its strength, Durability, cost efficient production and ease of installation. Commonly used in most general Industrial plants as well as Architectural buildings, it has wide applications as Pedestrian Traffic, platforms, safety barriers, drainage covers and ventilation grates Etc.
Load Bar depth- 25mm - 125mm
Load bar thickness- 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm & 10mm
Load bar type- Plain or serrated
Cross Bar Size - Twisted square bar 6mm, 8mm & 10mm
Pitch / Mesh- 30x100mm, 30x50mm, 41x100mm, 41x50mm, 34x38mm, 35x75mm & 35x100mm
Finish - Black Self colour / Painted / Hot Dip Galvanized

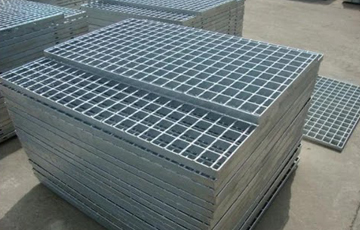

Standard Grating Panels
We maintain a huge stock of Standard Gratings panels ready for immediate shipments available in Plain or serrated surface.
Finish:- Mild Steel ( Self Colour)
- Mild Steel with Hot Dip Galvanized
- Mild Steel with Painted
Fabricated Custom Made Grating
We can offer Access Solutions based on your applications, Gratings can be produced and customized to suite your requirement weather it's a Small trench area, or a large complex structure with cut-outs and toe plates to obtain a safe access.
Fabricated Electro-Forged Gratings is precisely fabricated to conform the standards and specification under National Association of Architectural Metal Manufacturers (NAAMM). Gratings can be fabricated to suite any angle with Banding, Cutting, Curve or line needed.
Stair treads, We can offer Stair Treads with Different specification and sizes to suite your application. Stair Treads can be supplied with Pyramid type nosing or checkered plate nosing to maximize the safety.
Trench Grates And Embedded Angles
Vikrant can offer customized trench grating fabricated with embedded angle frames and pour frames for concrete access applications.
