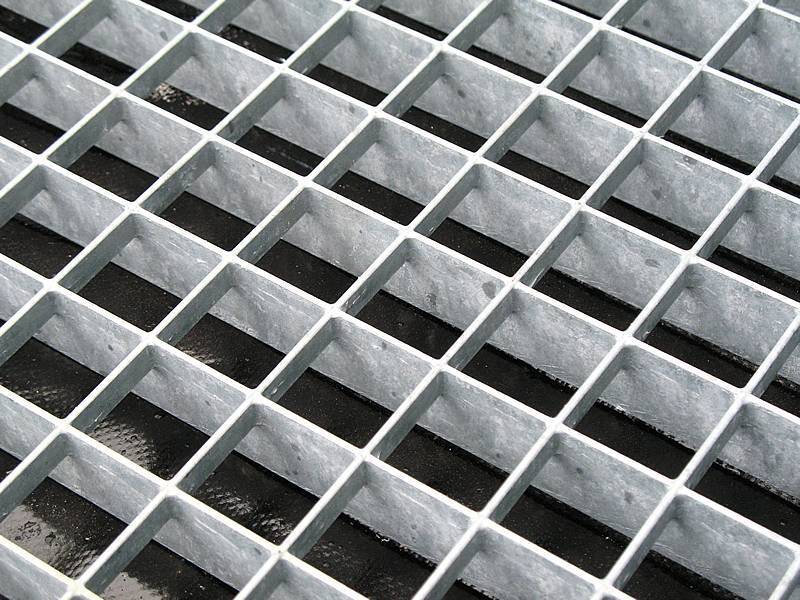

PRESS-LOCKED GRATING
Press-locked steel bar gratings is a steel grate with a system of interlocking, perpendicular bars, these gratings are ideal floor platforms used for vehicle movements, Architectural applications such as (grilles, dividers and screens), Industrial Walkway access system, etc.
We produce Press-Locked Bar Gratings with different Mesh openings corresponding to the area of application.
Load bar Sizes :25mm – 150mm
Load bar thickness : 3mm- 6mm
Surfaces (corresponding to the area of application)
- Serrated (slip resistant)
- Plain – Smooth surface
Finishes
- Hot Dip Galvanized
- Mill Finish
- Painted Steel
Equal Bar mesh Gratings
Reversible gratings are special kinds of gratings by having equal bearing and cross bars. So the optical character allows to have the same phenotype from worms eye of birds eye view. They can be produced in several heights and meshes and find there advantages in sunshades, visual protection or technical ceilings in public rooms or gymnasiums.
- Bearing and Cross bars thickness in 2 - 5 mm.
- Mesh size variable from 33 to 100 mm.
- Bearing bars height up to 80 mm.
