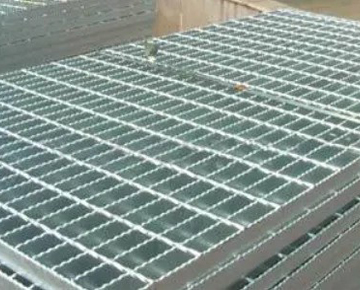

HEAVY DUTY GRATINGS
Heavy Duty Gratings commonly used on bridge-building, fire brigade driveways, Fuel Storage units etc., in-order to withstand Heavy loads.
We offer Heavy-duty gratings with bearing bar height up to 120 x 10 mm for Heavy Load environment to withstand load upto 80 tons of (UDL) Uniformly distributed load and 11.5 Tons of concentrated load with a clear span of 1 Mtr Approximately.
Load tables can be followed for designing and selection of Load bars based on the suitability.
Manual welded Grating
Manually Welded Heavy Duty Gratings are designed to meet the need for gratings subject to heavy rolling and static loads such as highways, plant floors, loading docks, inlet covers and airports. Since these conditions can range from light-duty forklifts to semi-trucks and trailers carrying maximum allowable highway loads, Heavy Duty gratings are manufactured in a wide variety of bar sizes and spacing.
BEARING BAR SELECTION: the bearing bar size must be specified based upon the anticipated load and the clear (unsupported) span to be served.
